Name: LED 300W Beam Moving head Light With RGBW Strip
Availability: InStock

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

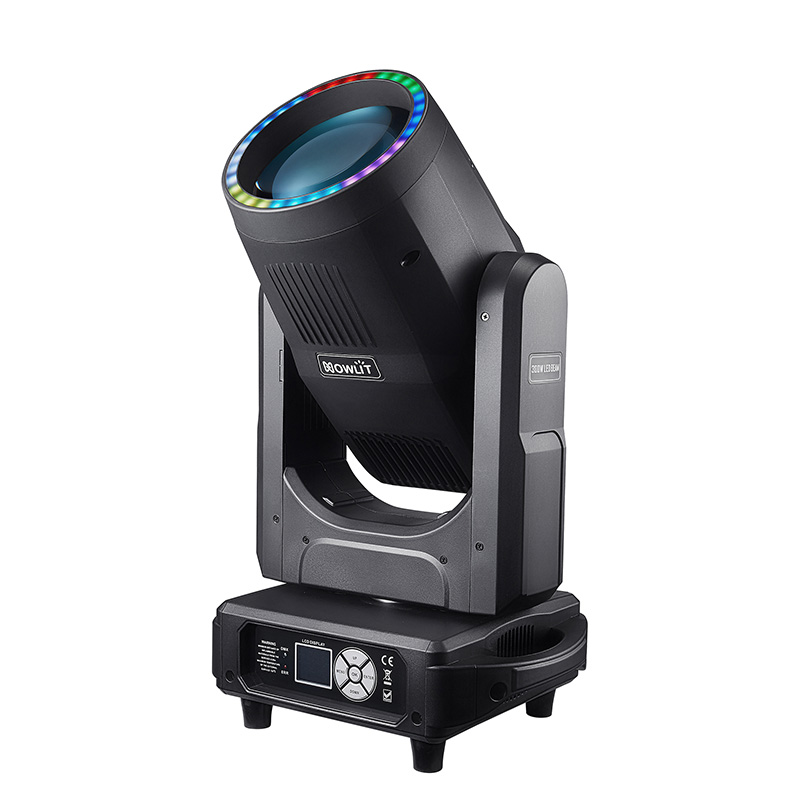

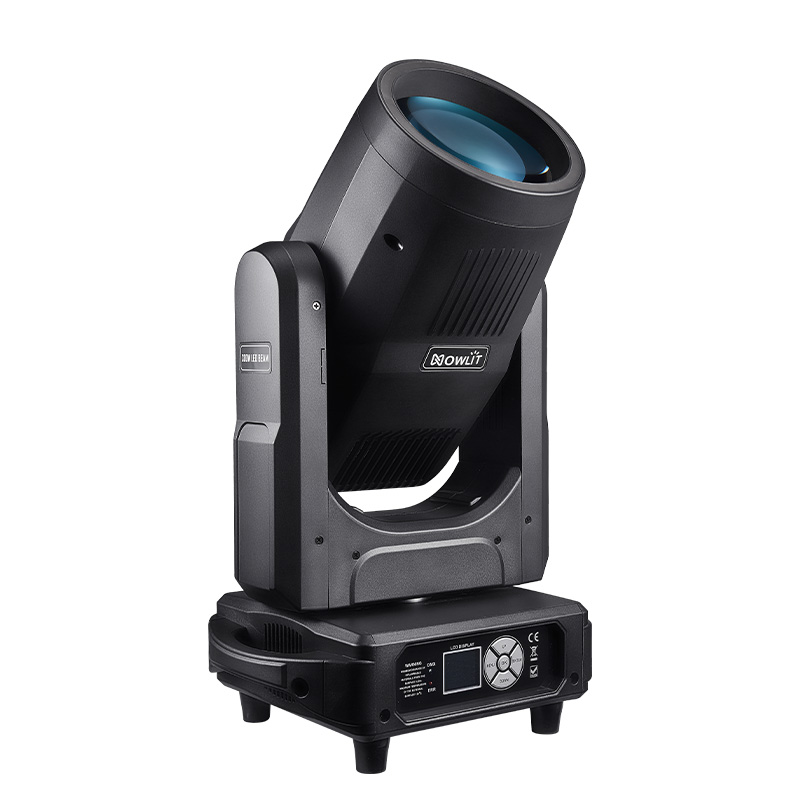

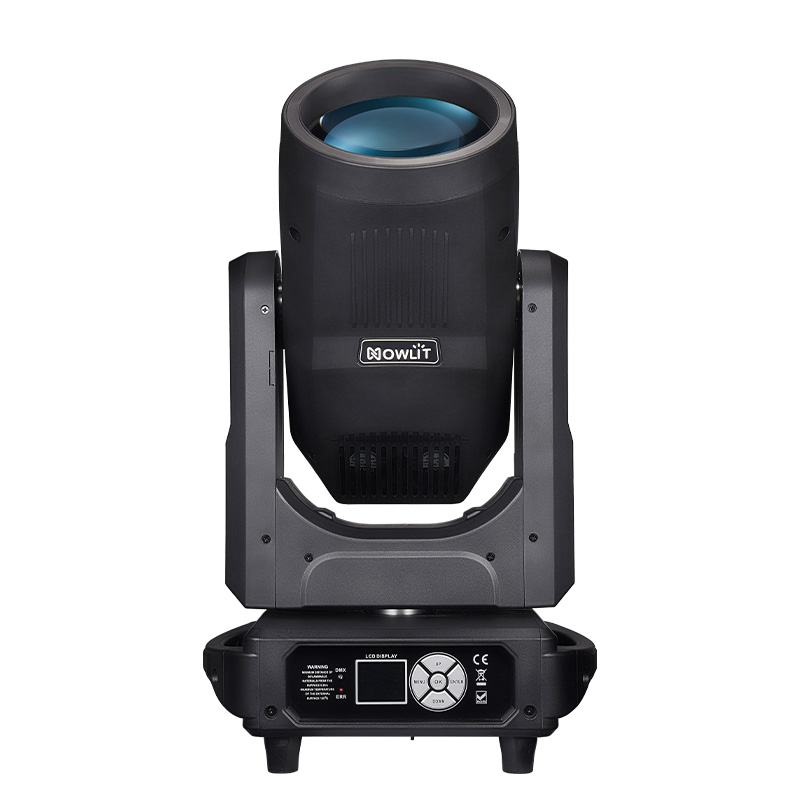

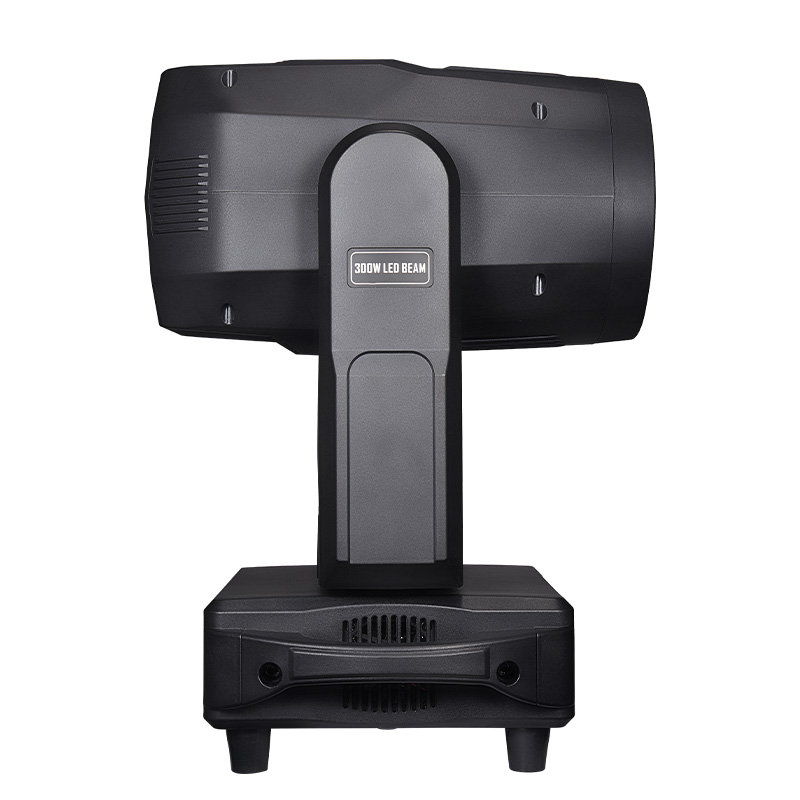

LED 300W Beam Moving head Light With RGBW Strip

300W LED Beam Light With RGBW Strip equipped with a 160mm diameter light output lens,it delivers a 2.5°ultra-narrow beam angle for a concentrated and sharp light spot. Weighing only 13.5kg

Brand model :
QR-LB300
Input voltage :
AC100V-240V, 50/60Hz
Light source :
300W LED module
Color wheel :
8+1/Super cool rainbow effect
Product size :
33.5*24*56cm(L*W*H)
Net weight :
13.5kg
Protection level :
IP20

Inquiry Now

Function Description

300W LED Beam Light With RGBW Strip equipped with a 160mm diameter light output lens,it delivers a 2.5°ultra-narrow beam angle for a concentrated and sharp light spot.Weighing only 13.5kg.

QR-LB300 comes loaded with all the creative features you need: rainbow effect + 14-color wheel,13 fixed gobo wheels,and dual rotating prisms (8-facet prisms and 24-facet prisms).It offers 0-100% linear dimming, electronic strobing with multiple speed options,and linear frost effect,ensuring smooth and natural light spot transitions.

Crafted from flame-retardant nylon material,this fixture is high temperature resistant and structurally robust,making it ideal for various professional lighting scenarios including theaters,studios,weddings,and mobile performances.

Technical parameters

Light Source System

Light source specification:300W LED module, with RGB LED strip
Light source color temperature: 8883K
Light source life: 20000 hours

Optical System

Beam range:2.5degrees
Lens diameter：160mm
Lux：45800 Lux@15m

Color System

Super cool rainbow effect
1 Independent Color Wheel with 14 Colors, featuring step and linear color-changing modes

Gobo system

Fixed gobo wheel: 13 fixed gobos+white, which can change speed and shake

Effect

Prism: 8 facet prisms and 24 facet prisms, can rotate independently in both directions
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 1 independent frost , 0-100% frost, natural and soft light spot

Pan&Tilt

Pan/Tilt Movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
Pan and Tilt adopt a precise photoelectric coupling positioning system

Electrical and Interface

Input voltage: AC100V-240V, 50/60Hz
Rated power: 400W
Signal interface: 3-coreXLR signal input/output

Control and Programming

Channel mode: 18CH
Control protocol: standard DMX512/RDM protocol
Display mode: 1.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Light body structure

Product appearance: nylon flame-retardant, heat-resistant
Working environment: -20 ° C to 40 ° C
Protection level: IP20

Size and weight

Product size: 33.5*24*56cm(L*W*H)
Net weight: 13.5kg
