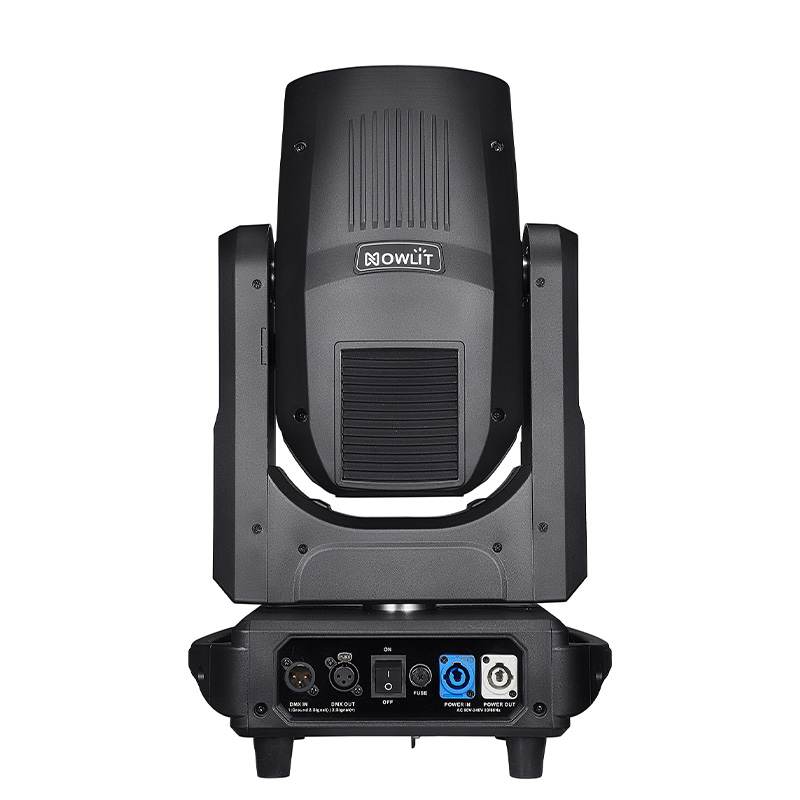

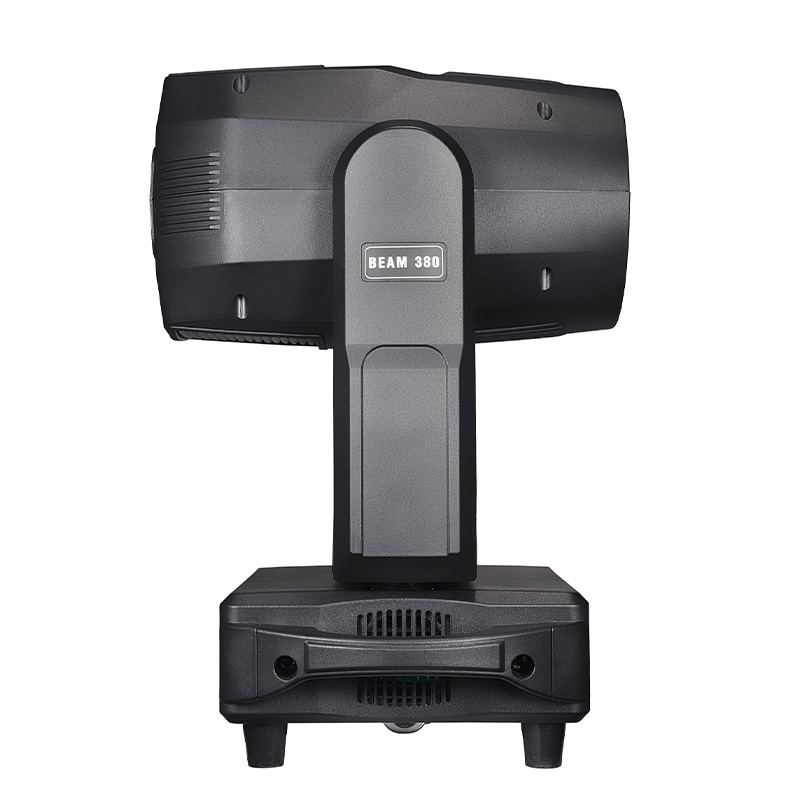

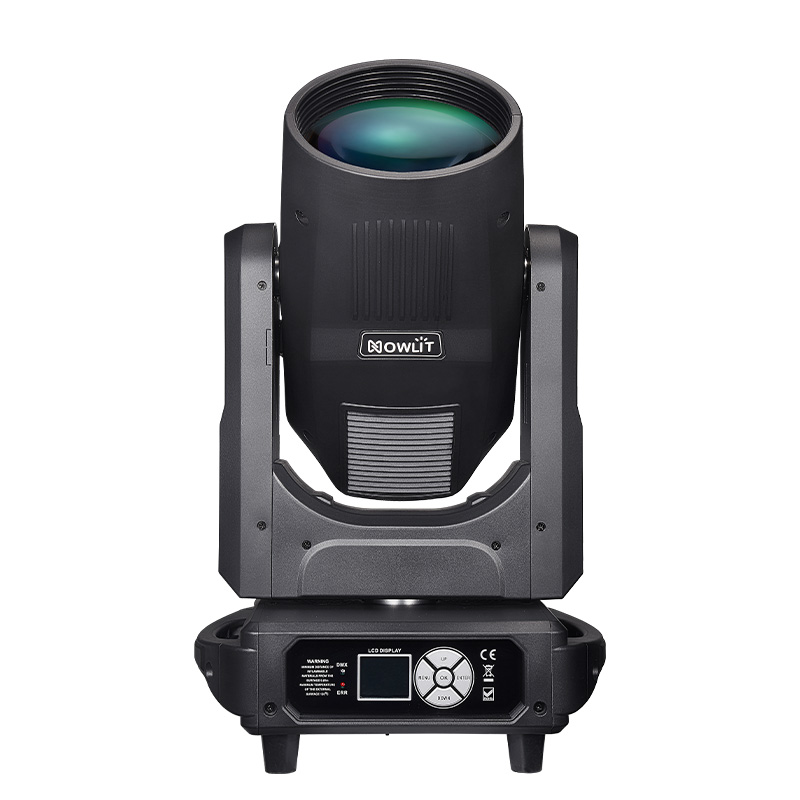

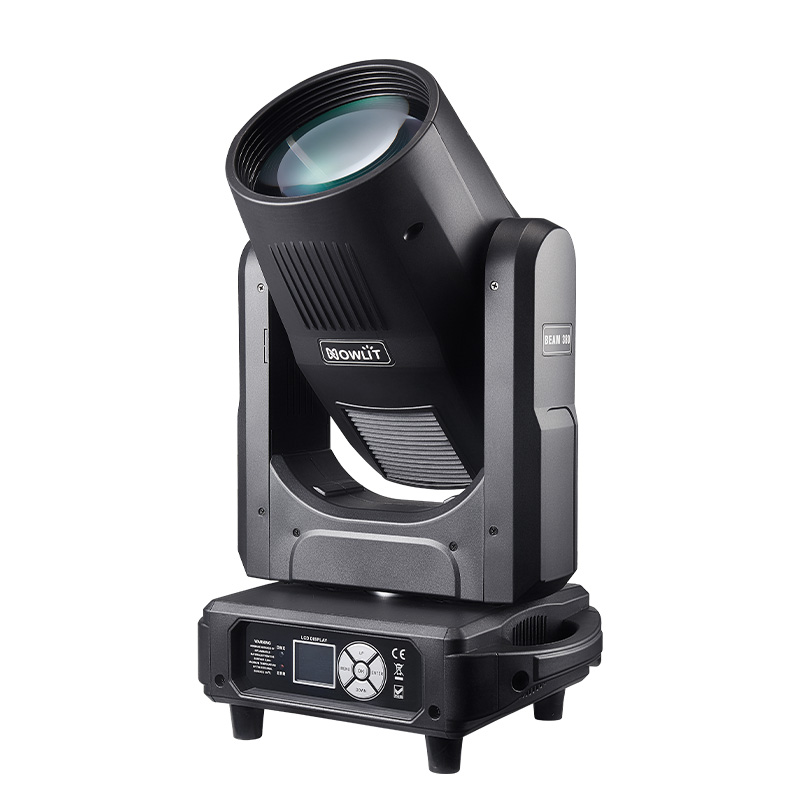

Mini 380W Beam Moving head light

Light Source System

• Light source specification: OSRAM 371W lamp
• Light source color temperature: 7500K
• Light source life: 1500 hours

Optical System

• Beam range: 2.8°
• Lens diameter: 160mm

Color System

• Super cool rainbow effect
• 1 independent color wheel with 14 colors, featuring step and linear color-changing modes

Gobo system

• Fixed gobo wheel: 13 fixed gobos + white, with variable speed and shake

Effect

• Prism: 8-facet prism and 24-facet prism, each can rotate independently in both directions
• Dimming: 0–100% linear adjustment
• Strobe: Multiple-speed electronic strobe effect
• Frost: 1 independent frost, 0–100% frost, natural and soft light spot

Pan &Tilt

• Pan/Tilt movement: 540° / 270°
• Automatic return to original position with 16-bit precision fine-tuning
• Pan and tilt adopt a precise photoelectric coupling positioning system

Electrical & Interface

• Input voltage: AC 100–240V, 50/60Hz
• Rated power: 500W
• Ballast: Electronic inductive ballast
• Signal interface: 3-core XLR signal input/output

Control & Programming

• Channel mode: 16CH
• Control protocol: Standard DMX512 / RDM protocol
• Display mode: 1.8-inch LCD touch screen, Chinese-English bilingual operating system, 180° reversible display
• Energy-saving sleep: Automatically enters sleep mode when the signal is disconnected for safety and energy efficiency
• Software upgrade: Software can be upgraded via DMX signal cable
• Heat dissipation system: High-efficiency cooling system with intelligent speed-regulating fan, built-in temperature sensor, and automatic thermal adjustment

Fixture Structure

• Product appearance: Nylon flame-retardant, heat-resistant
• Working environment: -20°C to 40°C
• Protection level: IP20

Size & Weight

• Product size: 33.5 × 24 × 54 cm (L×W×H)
• Net weight: 16 kg
