Function Description

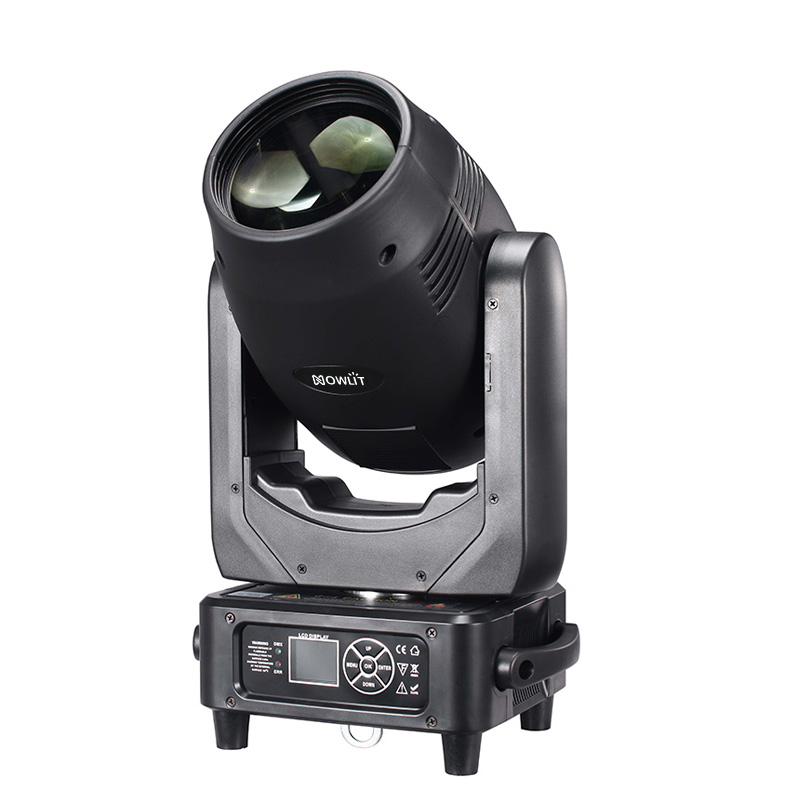

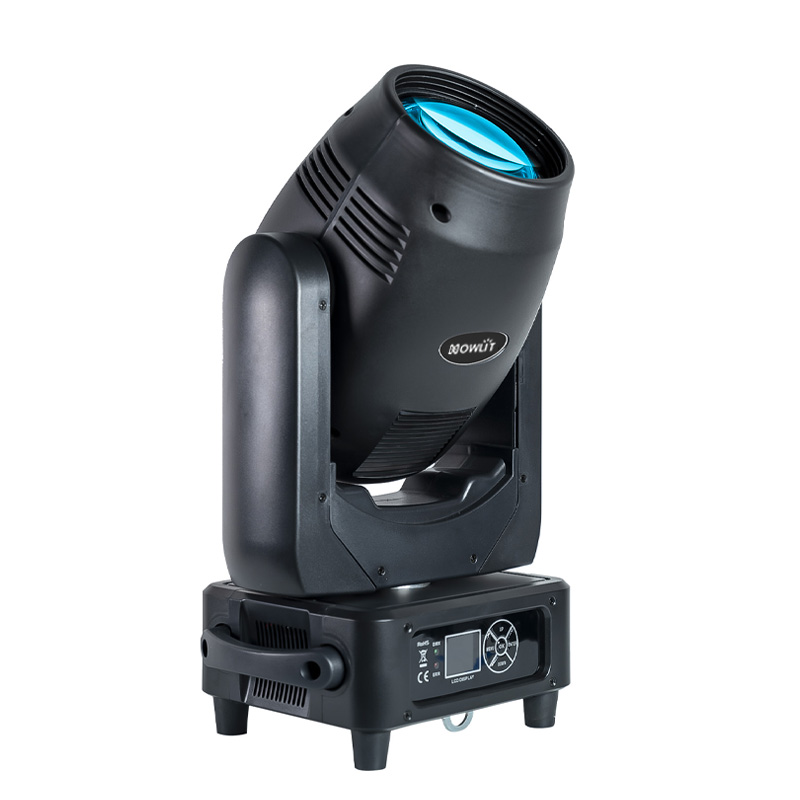

295W Beam Moving Head Light is equipped with an OSRAM 371 lamp and 4-degree ultra-narrow beam angle design, enabling precise long-distance projection with sharp and clear beams.
The fixture features 14 color,supporting bidirectional flowing water and rainbow gradient effects with smooth and rich color transitions.It comes with 9 fixed gobos and 4 pluggable rotating gobos,8-facet and 16-facet prisms that support prism stacking and bidirectional independent rotation,easy creation of multi-layered and dynamic beam effects.
The light offers motorized focus adjustment,linear dimming, strobe,and frost effects,operation response is sensitive.It supports an intelligent energy-saving sleep mode,automatically entering a low-power state when the signal is disconnected,ensuring safety and energy efficiency.
Suitable for theaters,concert stages,wedding celebrations,commercial exhibition halls,and other occasions requiring high-brightness output and dynamic lighting effects.
Technical parameters
Light Source System
- Light source specification:OSRAM 371W lamp
- Light source color temperature:8500K
- Light source life:1500 hours
Optical System
- Beam range:4°
- Total Lumen Output of Fixture:7950lumens
Color System
- Super cool rainbow effect
- 1 Independent Color Wheel with 14 Colors, featuring step and linear color-changing modes
Gobo system
- Fixed gobo wheel: 9 fixed gobos+white+4 rotation gobos, which can change speed and shake
Effect
- Prism: 8 facet prisms and 8+16 facet prisms, can rotate independently in both directions
- Dimming: 0-100% linear adjustment
- Strobe: Mechanical stroboscopic and adjustable stroboscopic effects,supporting stroboscopic macro function
- Frost: 1 independent frost,0-100% frost, natural and soft light spot
Pan&Tilt
- Pan/Tilt Movement:540°/270°
- Automatically return to its original position and perform 16-bit precision fine-tuning
- Pan and Tilt adopt a precise photoelectric coupling positioning system
Electrical and Interface
- Input voltage: AC100V-240V, 50/60Hz
- Rated power: 430W
- Ballast:Electronic Inductive Ballast

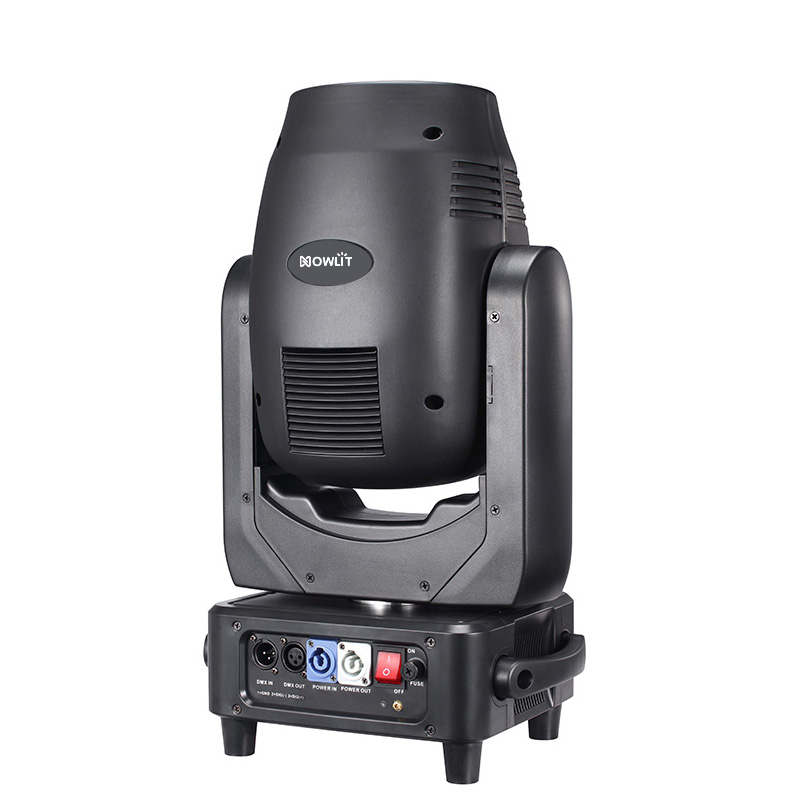

- Signal interface: 3-coreXLR signal input/output
Control and Programming
- Channel mode: 16/20CH
- Control protocol: standard DMX512/RDM protocol
- Display mode: 1.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
- Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
- Software upgrade: software can be upgraded via DMX signal cable
- Heat dissipation system:High-Efficiency Heat Dissipation System,intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system
Light body structure
- Product appearance: nylon flame-retardant, heat-resistant
- Working environment: -20 ° C to 40 ° C
- Protection level: IP20
Size and weight
- Product size: 31*21*51cm (L*W*H)
- Net weight: 14kg
