VP1400 1400W LED 4-in-1 Profile Moving Head Light

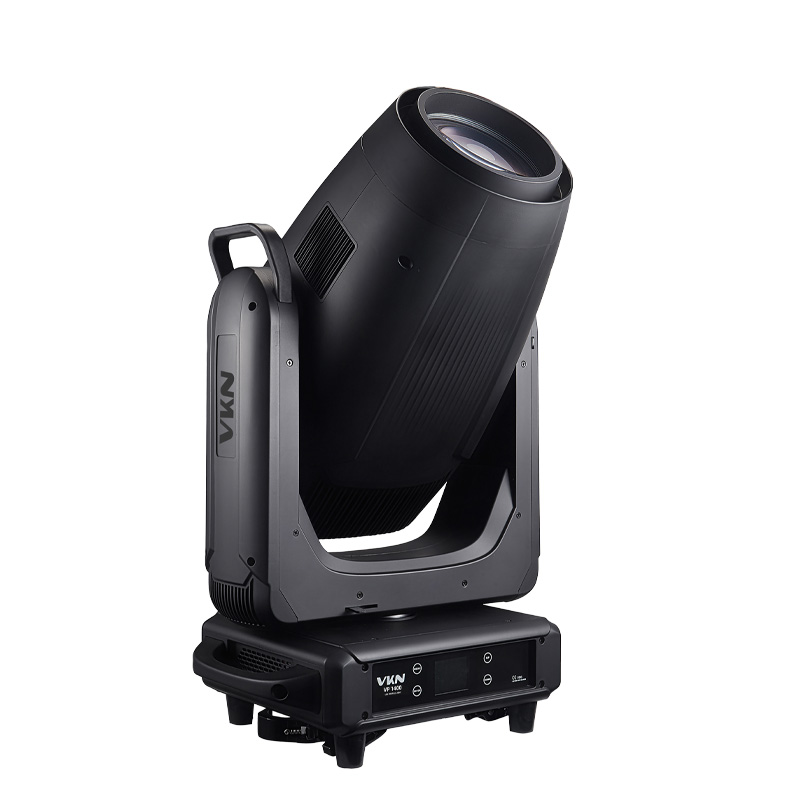

VP1400 stage lighting fixture for concert, theater and professional touring shows

VP1400 1400W LED 4-in-1 Profile Moving Head Light

VKN VP1400 1400W LED 4-in-1 Profile Moving Head, high-end flagship for stage use. dual frost, high output for touring, theater and large shows, stable performance and premium optics.

Modelo de marca :
VP1400
Voltaje de entrada :
AC100V-240V, 50/60Hz
Fuente de luz :
1200W LED module
CRI :
Standard mode Ra >70, high display mode >90 (switchable)
Rueda de colores :
6+1/CMY/CTO
Tamaño del producto :
42.6*28.9*75.1cm
Peso neto :
33.7 kg
Nivel de protección :
IP20
Modo de canal :
39/41CH

CONSULTE AHORA

Function Description

VKN VP1400 1400W LED 4-in-1 Profile Moving Head is a high-end flagship fixture engineered for professional stage applications. Integrating beam, spot, wash and precision framing functions, it features a 1200W high-output LED engine with premium CMY + CTO color system, delivering powerful brightness and smooth, refined color transitions. The ±120° rotating framing system and dual frost technology enable ultra-precise beam shaping with exceptional softness and depth. Built with premium optical design and advanced thermal management, VP1400 ensures outstanding performance, stability, and reliability for large-scale tours, theaters, and high-end entertainment productions.

Technical parameters

Light Source System

Light source specification: 1200W LED module
Light source color temperature: 6500K
Light source life: >20,000 hours
CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

Zoom range: electron linear zoom 5.5-50 degrees
Lens diameter：148mm
Lux：142,000 Lux @5m

Color System

Plug-in CMY continuous color mixing
Plug-in linear CTO color temperature correction (6500–2600K)
1 independent 6-color wheel with stepped and linear color change modes, including adjustable rainbow effect

Gobo system

Rotating Gobo Wheel: 7 interchangeable glass gobos, each can rotate forwards and backwards independently
Fixed Gobo Wheel: 7 metal gobos + open, with variable-speed jitter effect

Cutting System

4 independent cutting blades, individually controllable to create different product sizes and geometric shapes, rotatable 120°

Effect

Independent effect disc
Prism: 4-facet prism and 4-facet linear prism, independently bi-directional rotation
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 2 independent frost plates, 1 light 0–100% frost effect, 1 medium 0–100% linear frost effect, producing natural soft beam
Electric aperture: 5-100% rapid linear adjustment

Pan &Tilt

Pan/Tilt movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
A magnetic encoder positioning system is adopted

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated Power: 1450W
Signal interface: 3-core+5-core XLR signal input/output

Control & Programming

Channel mode: 39/41CH
Control Protocols: DMX512/RDM, optional NFC, Art-Net
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system
