5PCS 120W RGBL Tornado Light

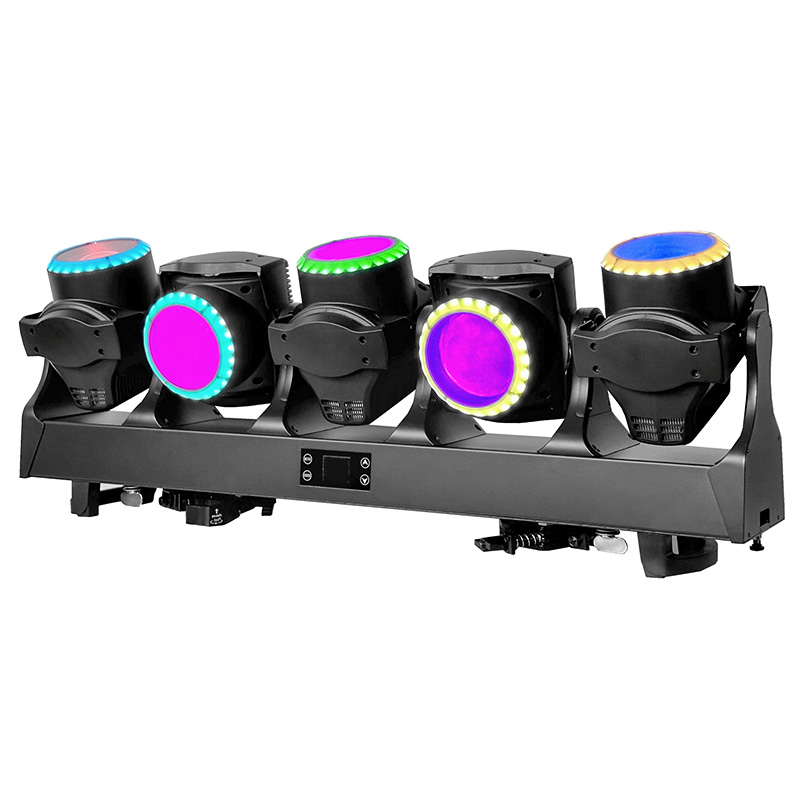

5PCS × 120W Tornado Light | RGBL Moving Head Stage Lighting

QR-TB5 5PCS × 120W RGBL Tornado Moving Head Light for Stage & Events

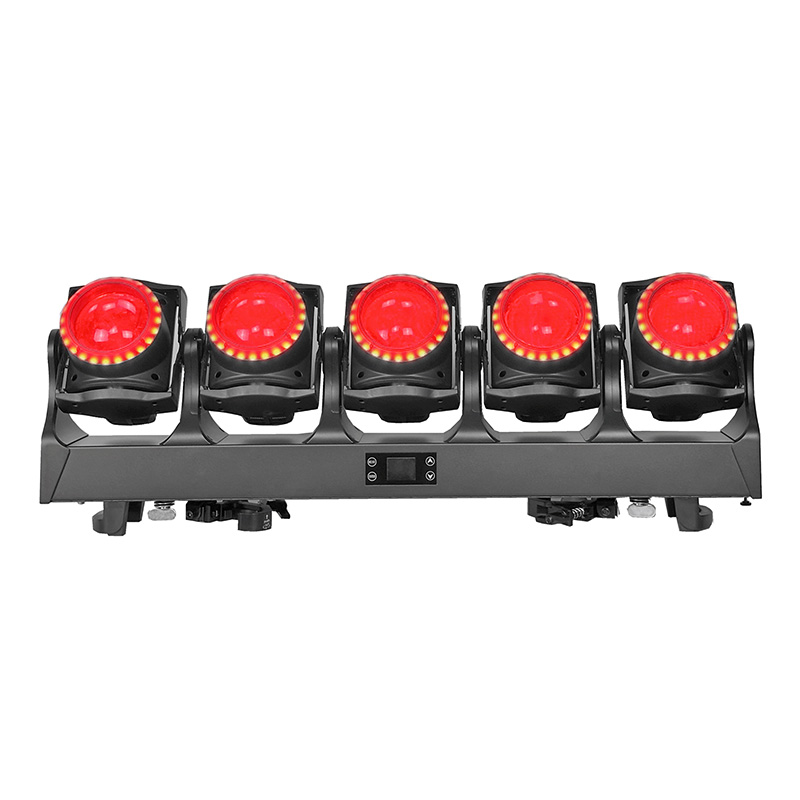

Tornado Light with five independently moving heads, 13,000 lumens output, RGBL color mixing and dynamic multi-angle effects for stage and events.

High-Output Tornado Light with Five Independently Moving Heads

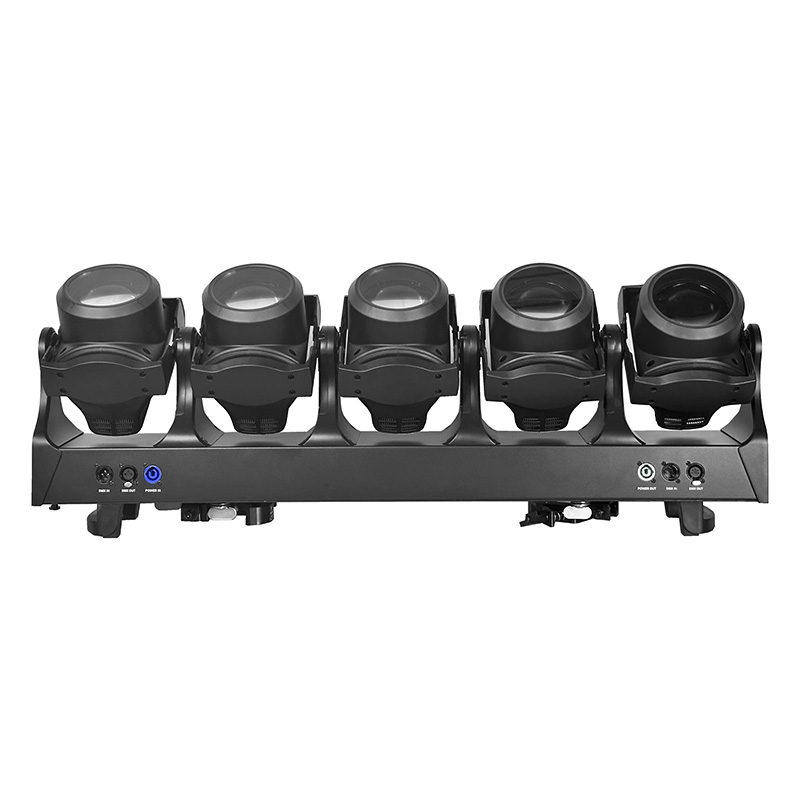

Five independently moving heads with pan & tilt movement

5PCS 120W RGBL Tornado Light

5PCS×120W Tornado Light delivers 13,000 lumens with five independently moving heads,offering dynamic multi-angle effects for stages,venues,and events.

Brand model :
QR-TB5
Input voltage :
AC100V–240V, 50/60 Hz
Light source :
5 × 120 W RGBL LED
Product size :
100.2 × 19.6 × 33.4 cm
Net weight :
26.6 kg
Protection level :
IP33
Channel mode :
21 CH/41 CH/71 CH/75 CH/85 CH/170 CH

Inquiry Now

Function Description

QR-TB5 5PCS×120W Tornado Light features five 120W RGBL LED main light sources,complemented by an outer ring of 120 × 0.5W RGB auxiliary LEDs,creating a well-layered lighting system with strong depth and dimensionality.With a total luminous output of up to 13,000 lumens,it delivers outstanding performance in both brightness and color rendering.The fixture supports beam angle adjustment from 3°to 30°and spot angle adjustment from 4° to 35°,while all five heads offer independent pan and tilt movement,enabling multi-angle,multi-layer dynamic lighting effects.Featuring a focused beam with flexible coverage,it is ideal for stage productions,entertainment venues,and commercial events,helping create energetic and visually striking scenes.

Technical parameters

Light Source System

Main light source: 5 × 120 W RGBL LED
Auxiliary light source: 120 × 0.5 W RGB LED
Total luminous output: 13,000 lumens
Light source life: >20,000 hours

Optics

Beam angle: 3°–30°
Spot angle: 4°–35°

Color System

Uniform RGBW color mixing system with rainbow Effect
Creates dynamic visuals and rich color transitions

Effect

Strobe: Multiple adjustable strobe speeds
Dimming: 0–100% linear dimming
Linear focusing system

Pan / Tilt Movement

Pan: 59°
Tilt: 221°
Automatic repositioning with 16-bit fine resolution

Electrical & Interface

Rated power: 935 W
Waterproof power connectors (True1 type) input/output
Input voltage: AC100V–240V, 50/60 Hz
Signal connections: 3-pin or 5-pin XLR input/output

Control & Programming

Channel modes: 21 CH/41 CH/71 CH/75 CH/85 CH/170 CH
Display: LCD display
Control protocols: DMX512, RDM, master/slave, auto, manual control
Firmware upgrade: Via DMX link

Fixture Structure

Housing material: Aluminum alloy structure with flame-retardant engineering plastic
Cooling system: Fan cooling
Protection level:IP33
Working environment-20°C to 45°C

Size and weight

Product size: 100.2× 19.6× 33.4 cm
Net weight: 26.6 kg
