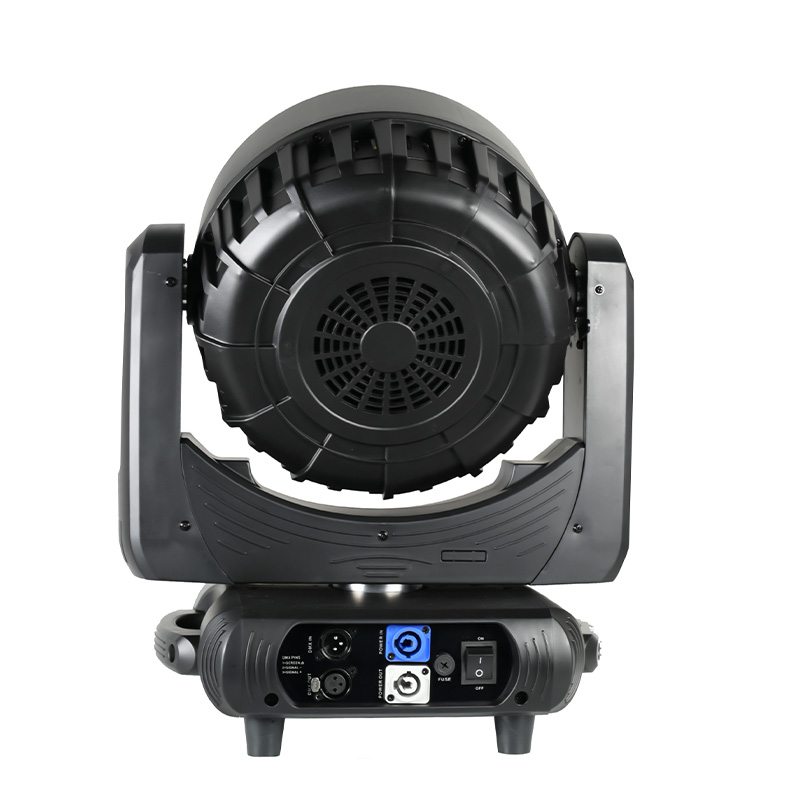

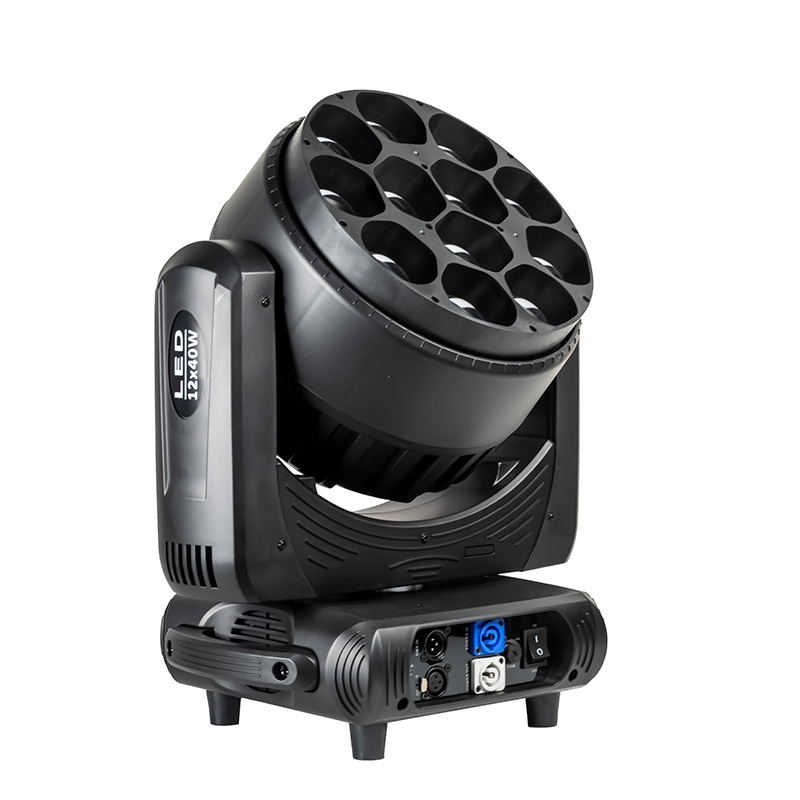

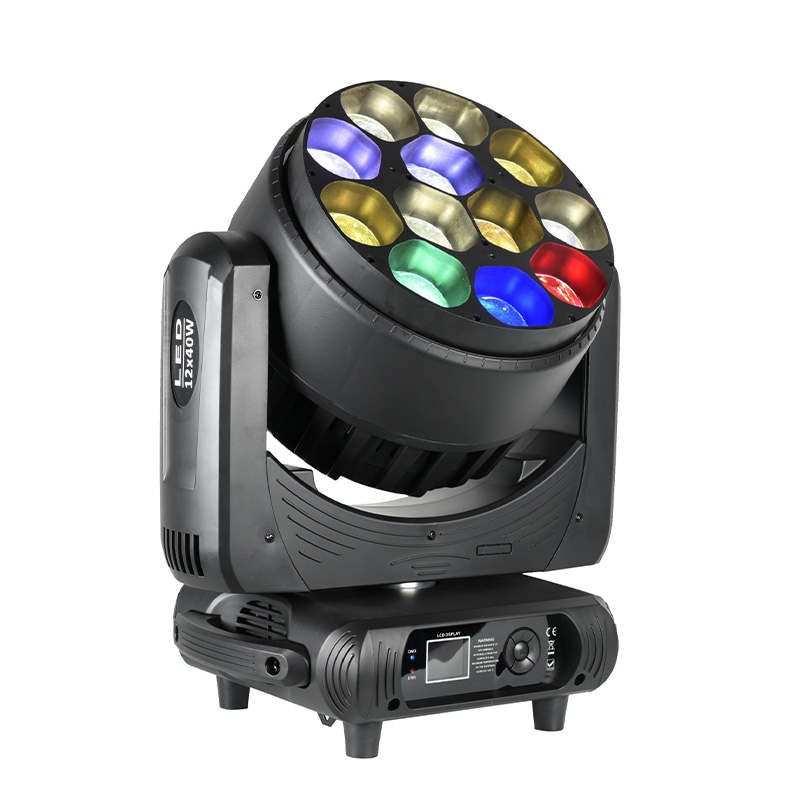

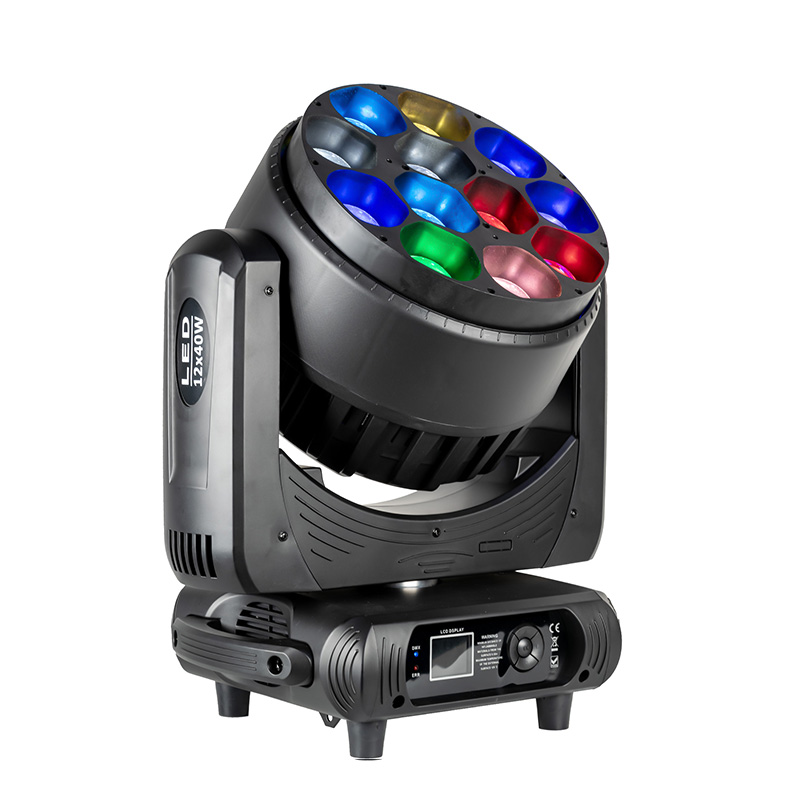

12*40W Zoom Moving Head Wash Light

12*40W Zoom Moving Head Wash Light, featuring long lifespan and high luminous efficiency, boasts a wide zoom range of 5-40° combined with a 360° infinitely rotatable optical lens.

  • Brand model :

    QR-M1240
  • Input voltage :

    AC100V-240V, 50/60Hz
  • Light source :

    12x40W RGBW
  • Product size :

    40*27*47cm
  • Net weight :

    14.5kg
  • Protection level :

    IP20
  • Channel mode :

    19CH/67CH
Inquiry Now



Function Description


12×40W Zoom Moving Head Wash Light is a professional beam and wash effect stage light equipped with 12 pieces of 40W RGBW LED light sources,featuring long lifespan and high luminous efficiency.With a wide zoom range of 5-40°,combined with a 360°infinitely rotatable optical lens,it can easily create diverse visual effects ranging from delicate area washing to powerful beam projection,and also present rich dynamic light patterns such as kaleidoscope and waistline effects.The fixture supports ring control function,flexibly meeting various lighting needs from close-range area dyeing to long-distance projection.It is a high cost-performance ratio choice suitable for both fixed installation and tour performances.

Technical parameters


Light Source System

  • Light source specification: 12x40W RGBW LED
  • Light source life: >20,000 hours

Optical System

  • Beam range: 5-40°

Effect

  • Fast electronic strobe: 1-25 Hz
  • Dimming: 0-100% linear dimming
  • Color temperature control: Built-in CTO (Color Temperature Orange)
  • Lens rotation: 360° infinite rotation of optical lens,creating variable kaleidoscope,waist-like effects,etc.
  • Single ring control: The light source supports independent color change control for inner and outer rings



Electrical & Interface

  • Rated power: 500W
  • Input voltage: AC100V-240V 50/60Hz
  • Data connection:3-pin XLR input/output

Control & Programming

  • Control channels: 19CH/67CH
  • Protocol:Standard DMX512 protocol,RDM protocol
  • Software update via DMX signal for quick and easy upgrades
  • Silent fan with intelligent speed regulation
  • Intelligent temperature protection to ensure LED lifespan

Pan&Tilt

  • Pan/Tilt movement: 540°/270°,with automatic return and 16-bit precision adjustment
  • Pan and Tilt positioning with precise opto-coupler system

Fixture Structure

  • Flame-retardant engineering plastic housing
  • Fan cooling
  • Protection level: IP20
  • Working environment: -20℃ to 45℃

Size & Weight

  • Product size: 40*27*47cm
  • Net weight: 14.5kg
